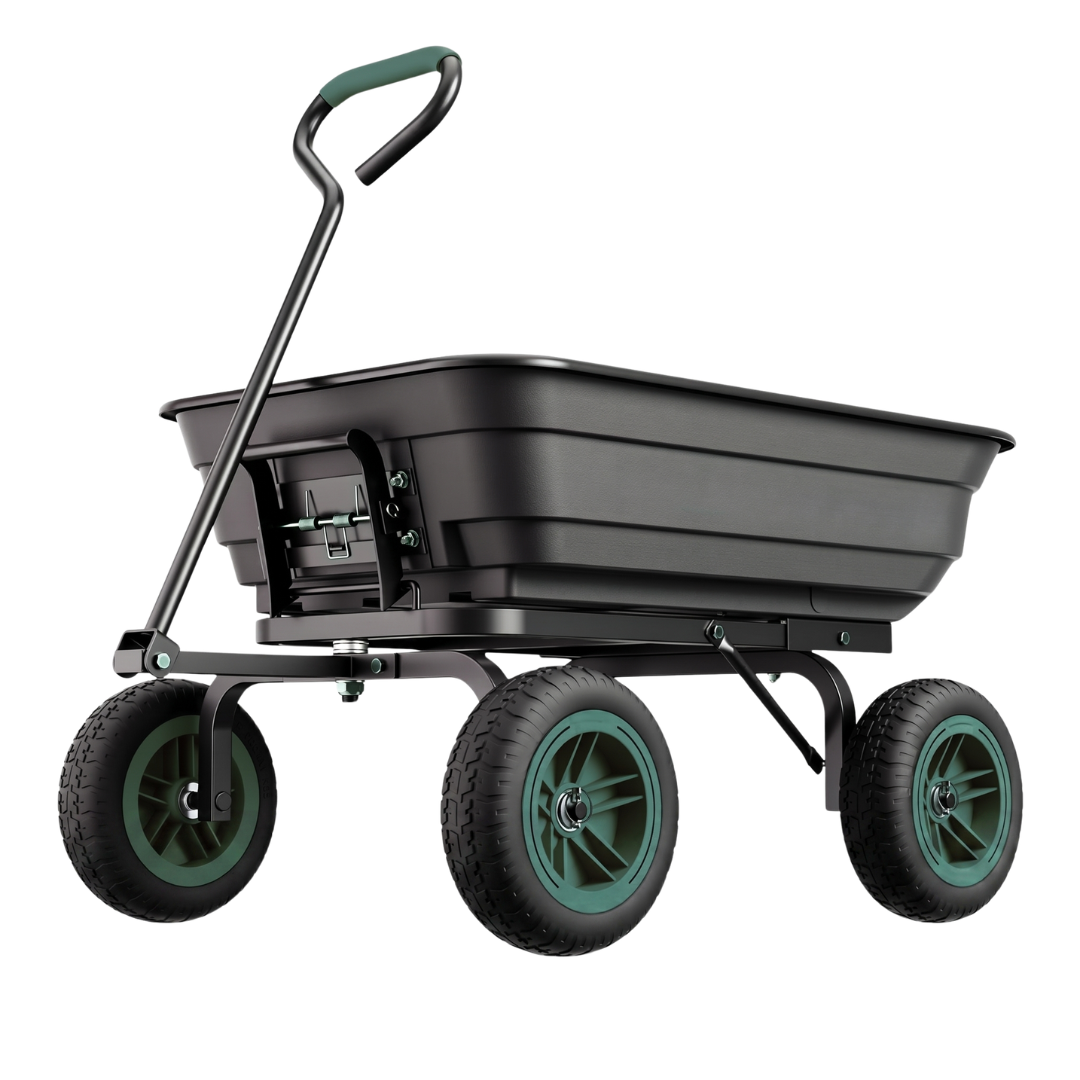

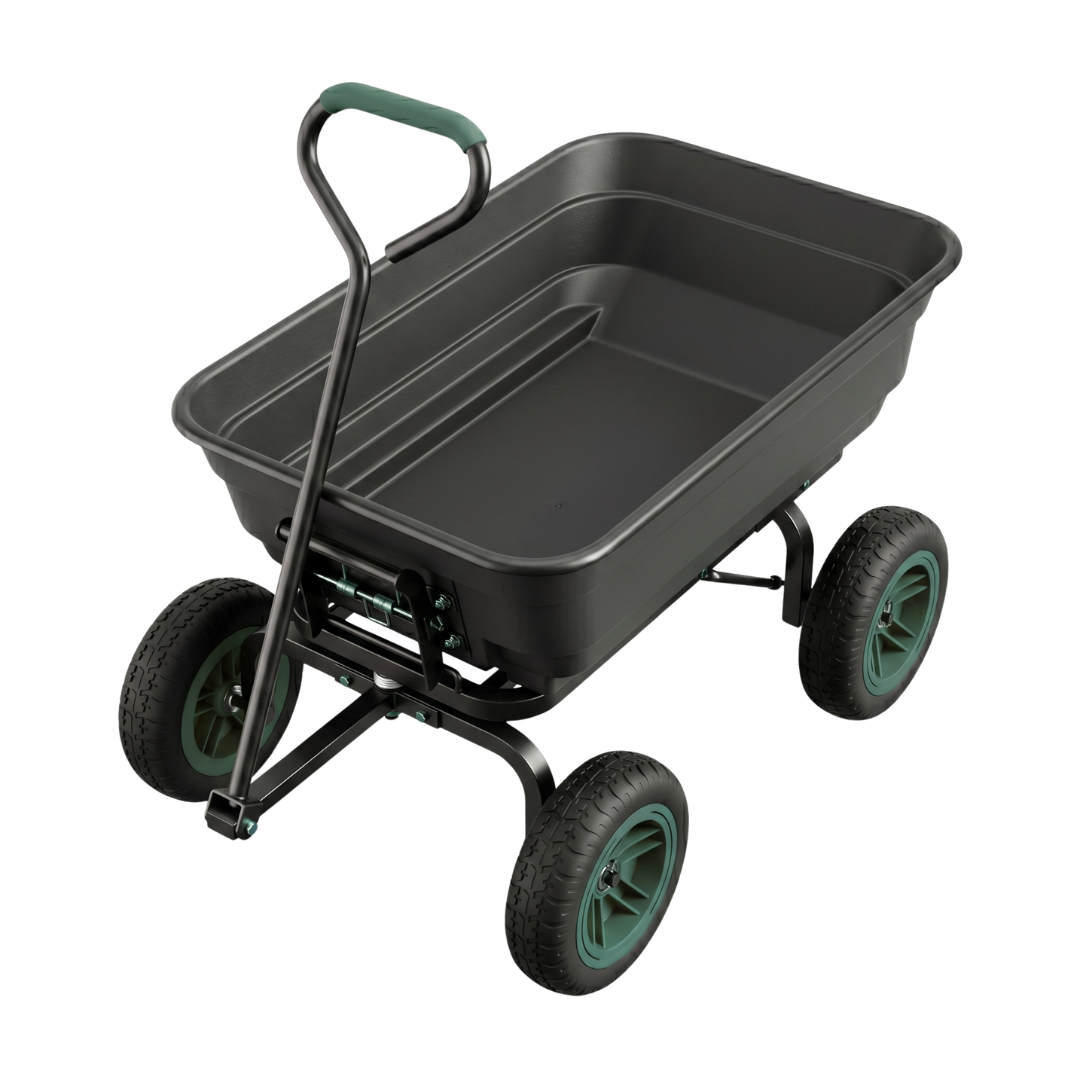

600 lb Garden Dump Cart Steel Frame Material Handling Wagon System

Built for Yard and Property Hauling

The utility dump cart features a molded polypropylene bed with uniform wall thickness for consistent load support. A steel frame beneath the bed includes diagonal rear supports that form a triangular load path directing weight toward the axle mounts. This structure combines a rigid hauling surface with a reinforced underframe for material transport. The cart is rated for up to 600 lb of load capacity. Locknut fasteners are used at primary frame connections to maintain bolt tension during repeated use.

Controlled Dumping and Steering Movement

The steering and dumping systems support controlled movement across outdoor spaces. The multi-axis handle allows up to 270° of horizontal rotation and 180° of vertical movement for navigating around garden beds, patios, and storage areas. The front pivot mechanism enables up to 90° of bed tilt for unloading. The cart uses 10 in no-inflation tires with dual steel bearings for steady axle rotation. Tread design maintains contact across gravel, soil, sand, and paved surfaces, while the axle keeps the load centered during movement.

Built for Moving, Loading, and Storage

The cart includes an open underside frame for removal of dirt and debris after use. The 32.5 in steel handle aligns with the frame for straightforward pulling and maneuvering. It remains stable on level ground during loading or storage. The compact bed fits easily in sheds, garages, or patio storage areas. The polypropylene surface can be rinsed clean after hauling soil, compost, or yard materials. At 24 lb, it can be repositioned around the property when needed.

Product Benefits:

• 600 lb Load Capacity: Designed for transporting up to 600 lbs of evenly distributed materials.
• 90° Dump Function: Front pivot mechanism allows controlled unloading of materials.
• No-Inflation Tire: 10 in tires eliminate the need for inflation while supporting outdoor movement.
• Multi-Axis Steering: Handle rotates up to 270° horizontally and 180° vertically for maneuverability.
• Steel and Poly Build: Polypropylene bed paired with a steel frame and steel handle components.

Specifications:

• Load Capacity: Up to 600 lb
• Product Weight: 24 lb
• Cargo Dimensions: 36 × 20 × 8.5 in
• Overall Dimensions: 43.5 × 24.5 × 21 in
• Handle Length: 32.5 in
• Wheel Size: 10 in diameter
• Bearing Type: Dual steel wheel bearings
• Dump Angle: Up to 90°
• Handle Rotation: Up to 270° horizontal; Up to 180° vertical
• Product Material: Polypropylene bed with steel frame and steel handle
• Surface Compatibility: Gravel, soil, sand, and paved outdoor surfaces
