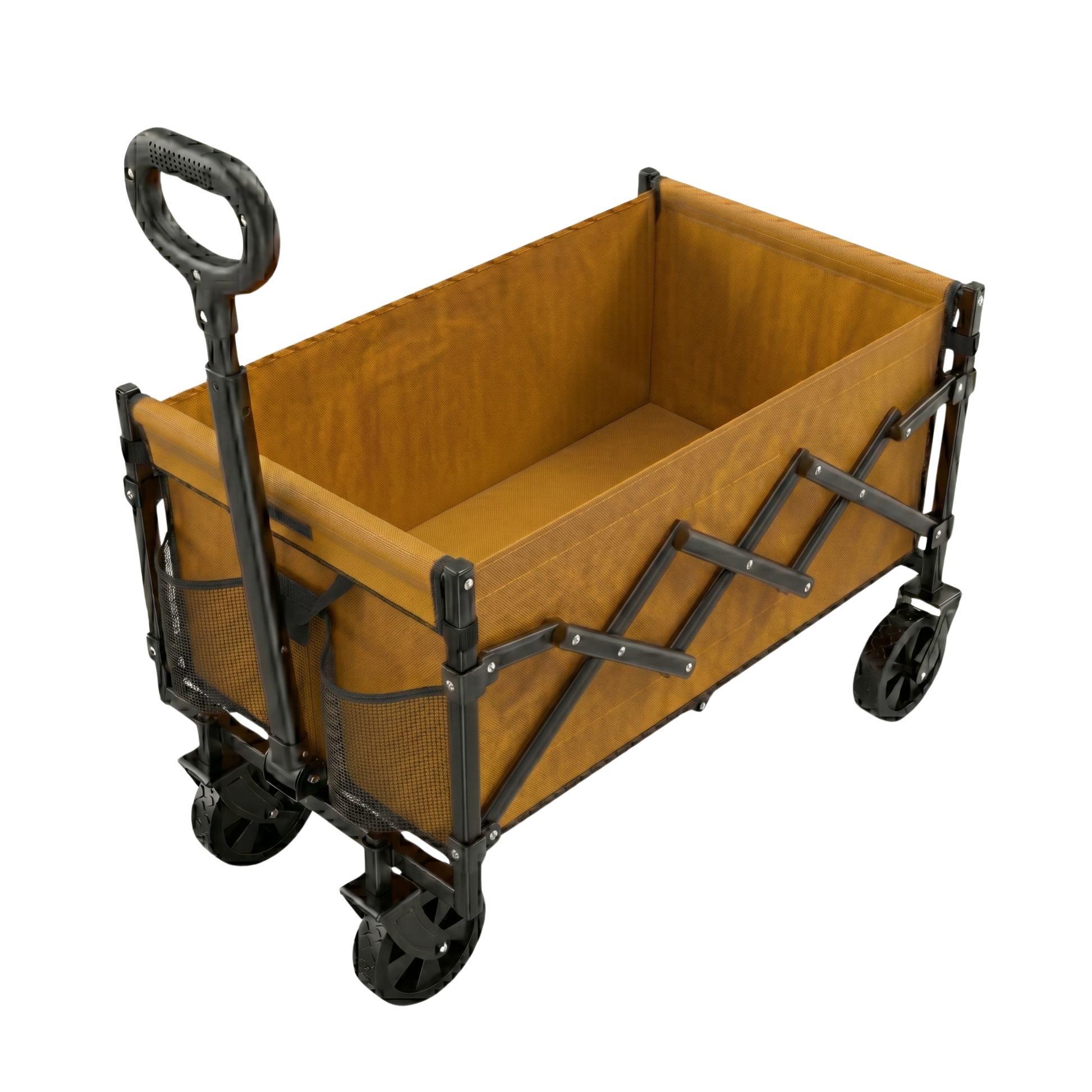

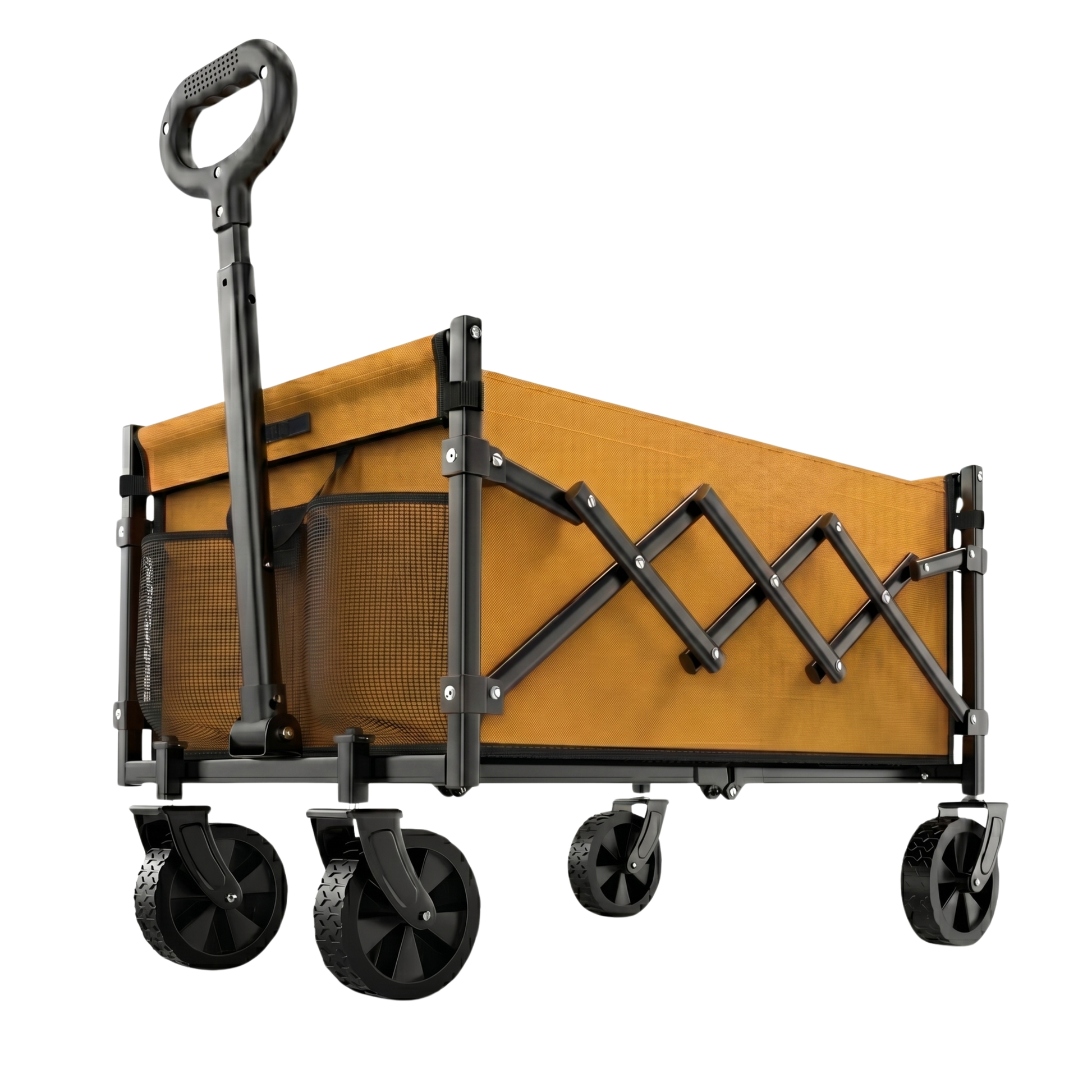

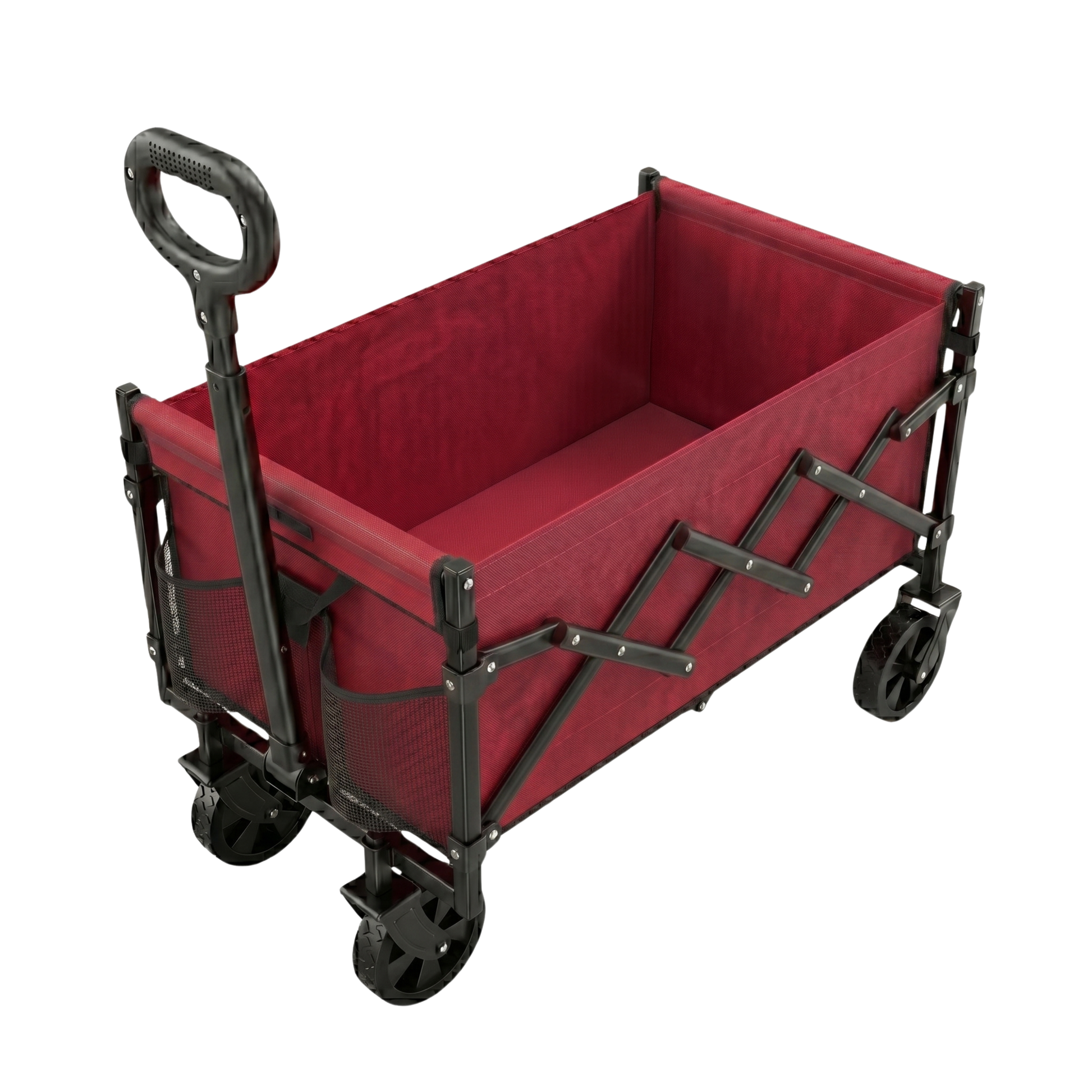

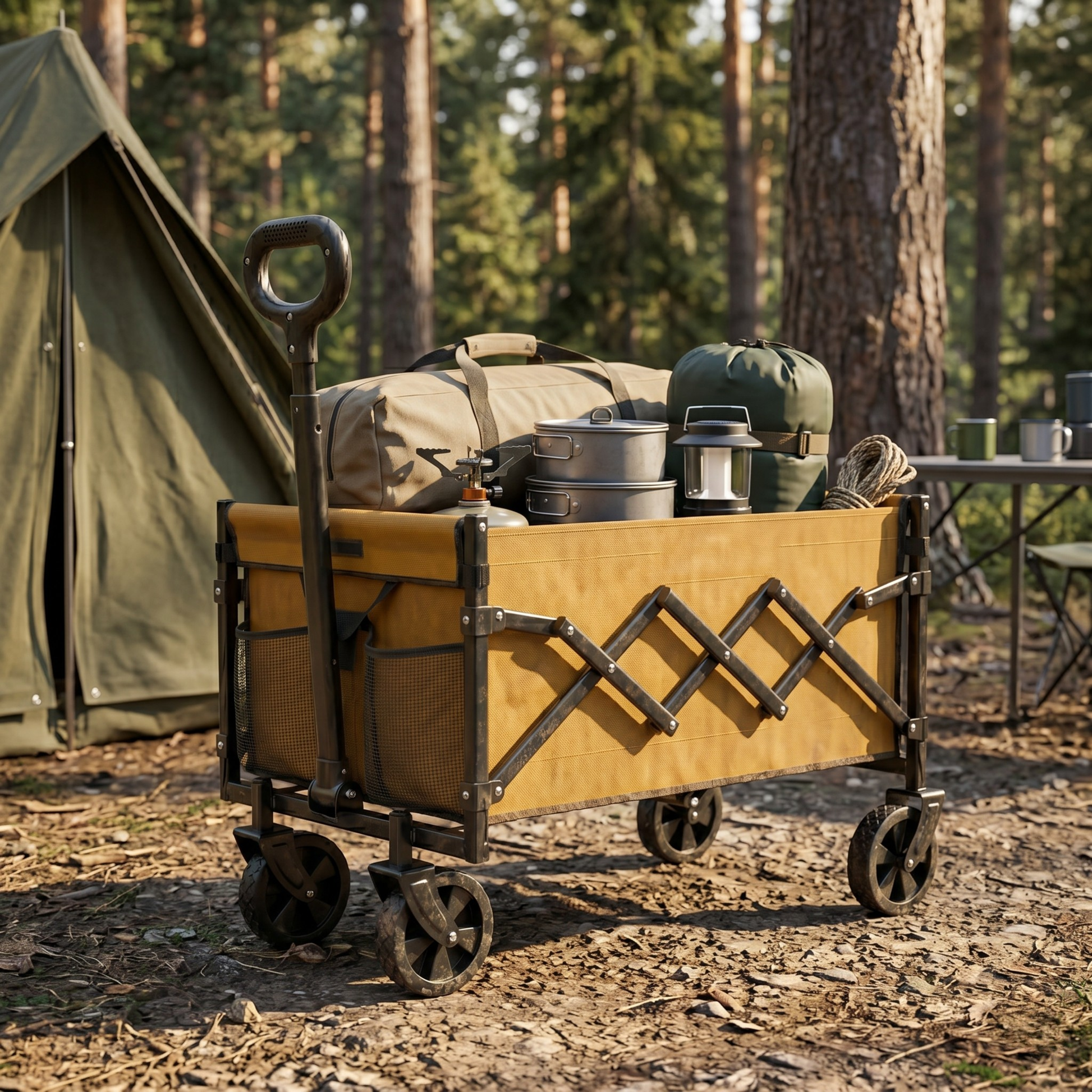

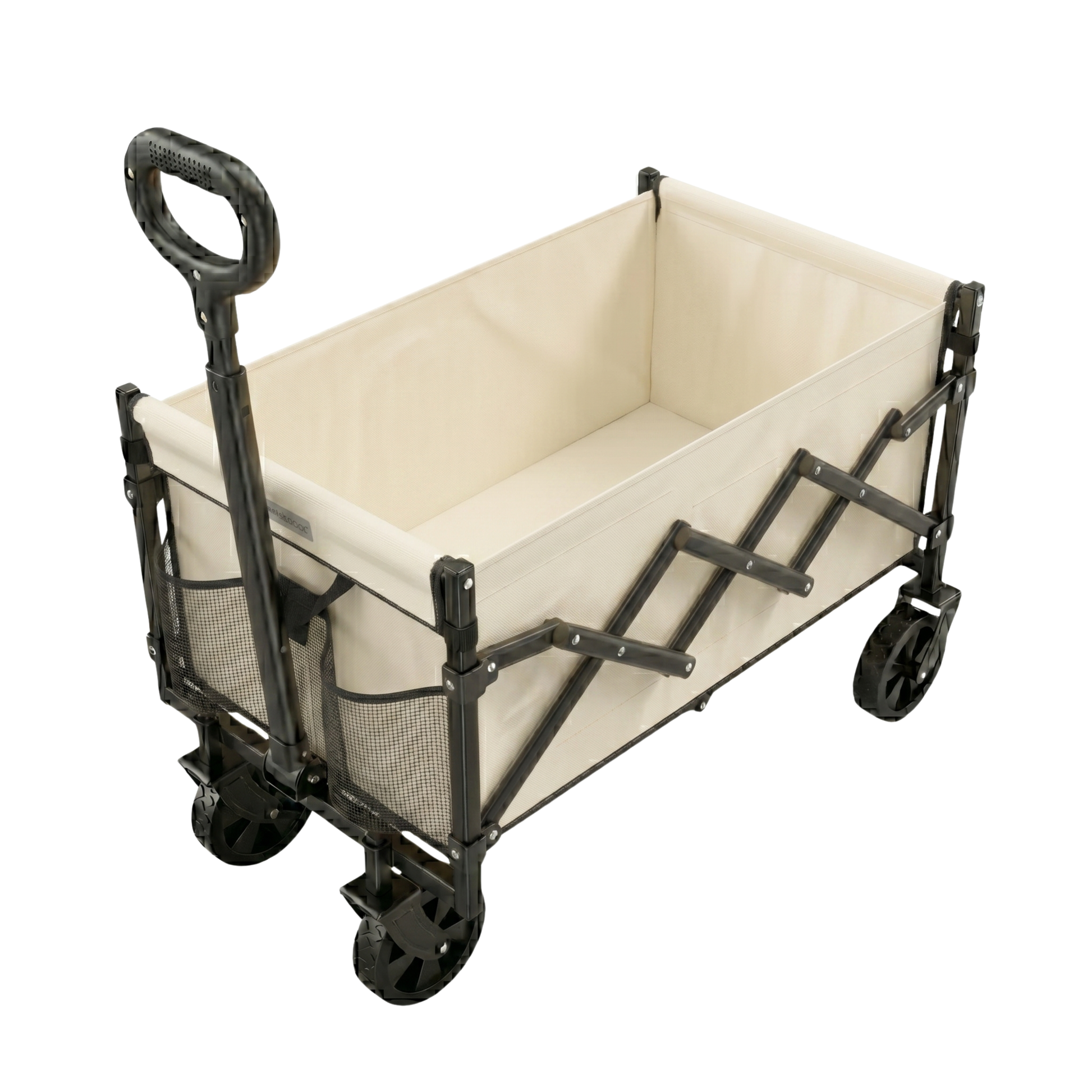

220 lb Capacity Wagon Cart with Adjustable Handle Motion System

Load Distribution and Frame Layout

The structure uses a carbon steel frame forming the primary load path across the base platform. Reinforced joints distribute force through longitudinal supports and corner points. The cargo area is made from 300D Oxford fabric, forming a flexible compartment for irregularly shaped items. The load capacity is 220 lb across the platform surface. The aluminum handle connects directly to the frame for directional input during movement.

Wheel and Movement System

The cart includes four swivel casters with 360-degree rotation for directional movement across varied surfaces. Each wheel maintains ground contact across gravel, grass, sand, and paved paths. The aluminum handle extends up to 28 inches to adjust steering position. Movement control is achieved through wheel rotation combined with handle alignment. The wheelbase distributes weight across four contact points. Folding joints allow transition between full and reduced configurations without tools.

Storage and Configuration Flow

The folding mechanism reduces the structure into a reduced form for placement in storage spaces or vehicle trunks. The aluminum handle retracts along its extension path when not in use. The fabric cargo area folds inward with the frame during transition. The design supports repeated folding and unfolding cycles. When deployed, the platform returns to its full load-bearing state without adjustment steps.

Product Benefits:

• Load Capacity Range: Supports transport loads up to 220 lb across the platform
• Wheel Movement System: Four 360-degree swivel casters for directional control
• Frame Construction: Carbon steel structure with folding joints
• Telescopic Handle: Aluminum handle extends up to 28 inches for steering input
• Storage Transition Design: Folding form reduces space required for placement

Specifications:

• Material: Carbon steel frame with 300D Oxford fabric cargo
• Unfolded Dimensions: 27 x 16.5 x 32 inches
• Folded Dimensions: 7.5 x 16.5 x 15.4 inches
• Weight: 11.2 lb
• Load Capacity: 220 lb
• Wheels: Four swivel casters with 360-degree rotation
• Handle: Aluminum telescopic handle extending up to 28 inches
