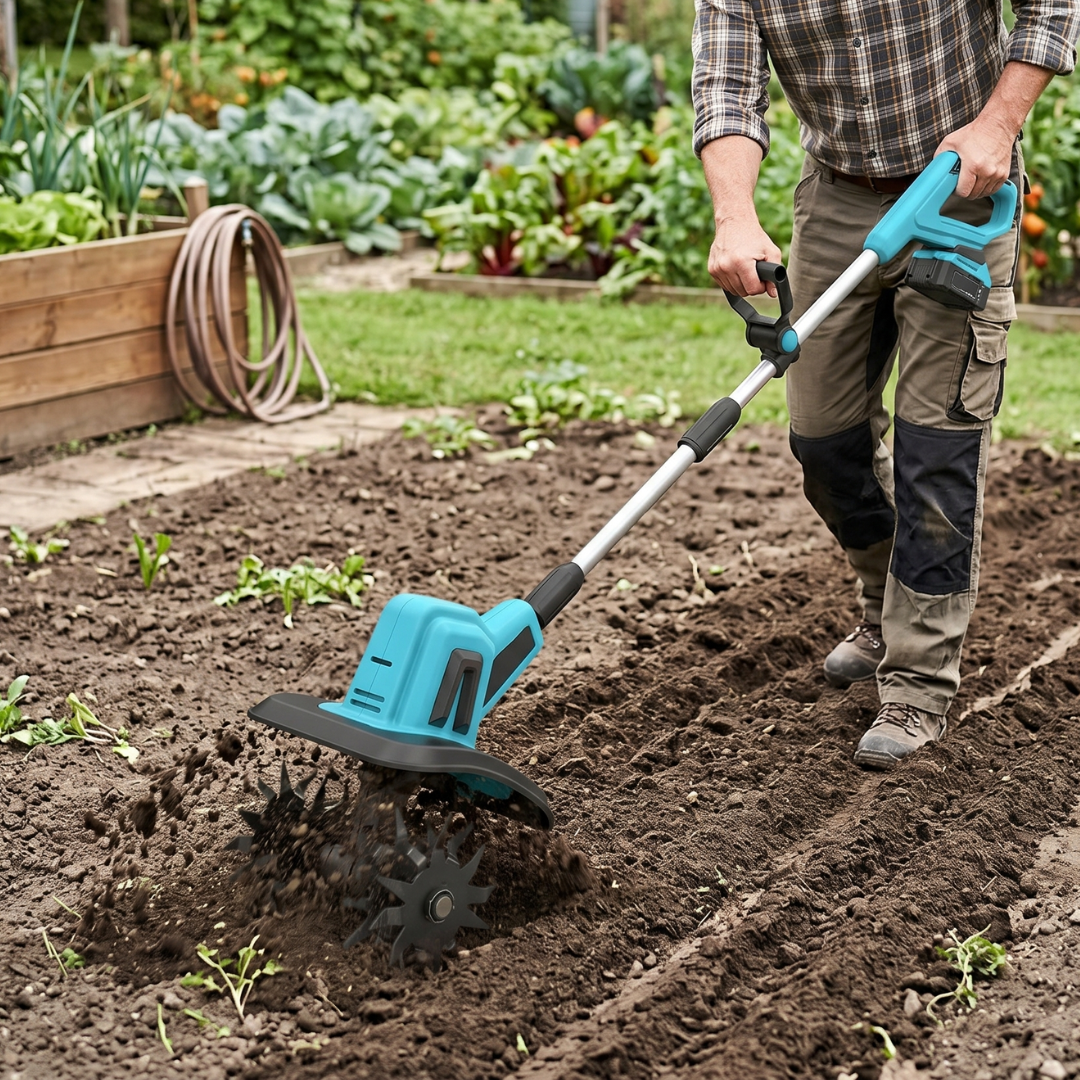

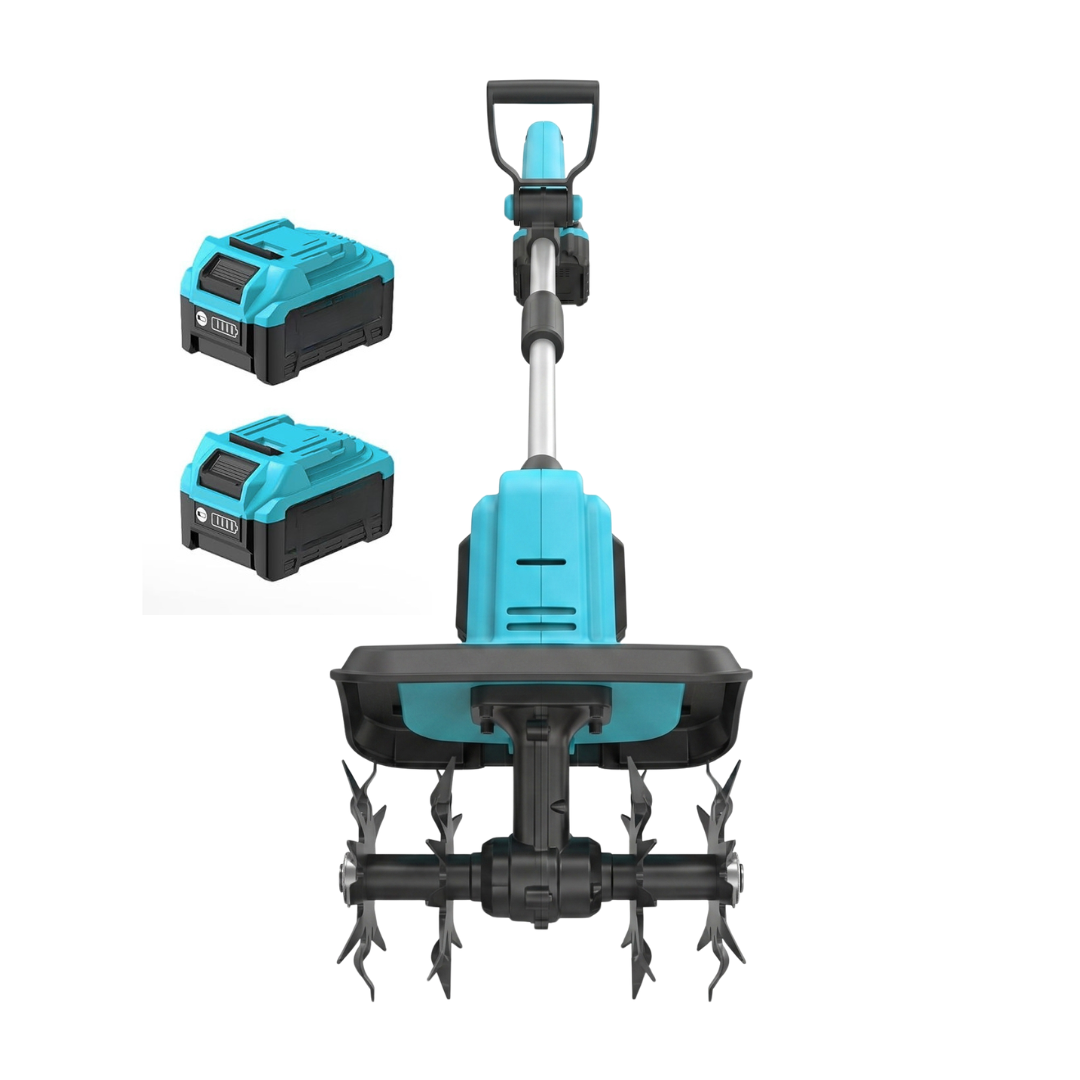

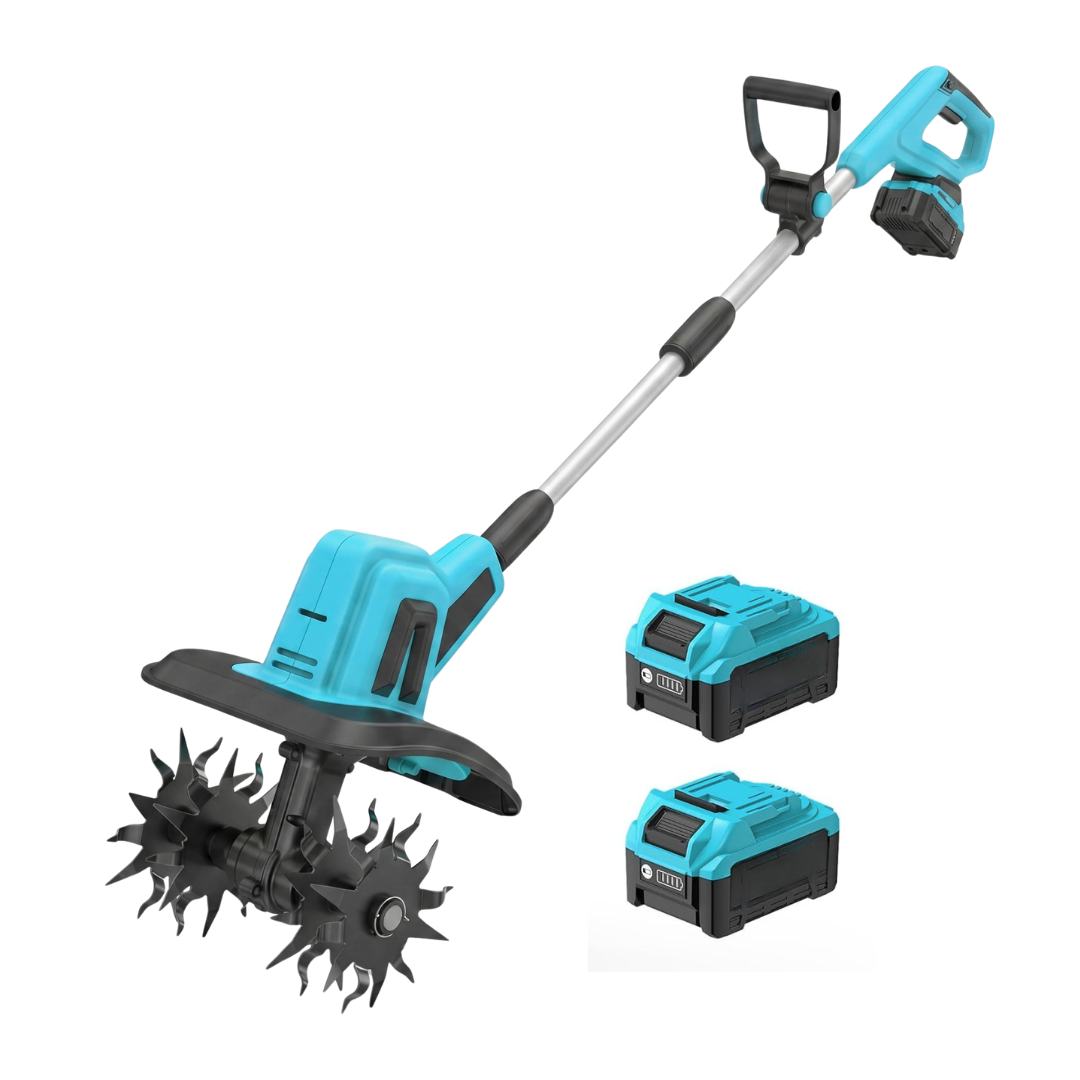

20V Battery Powered Garden Tiller Cultivator with Steel Tines Tools

Soil Processing System Overview

This 20V tiller cultivator uses a rotary tine assembly driven by a vertical shaft system. Four steel tines engage soil during rotation. The working path measures 9 inches per pass. Maximum penetration reaches 6 inches depending on ground condition and soil type. The frame uses alloy steel for structural support.

Drive System Behavior

The drive system operates at 360RPM. Power is supplied through 20V lithium battery modules, with three 4.0Ah units included and one pre-installed. Battery swapping allows continued operation without wired connection. Activation requires simultaneous use of a interlock switch and main trigger. Gear housing can be removed for access during cleaning and maintenance cycles.

Control Interface Layout

Handle assembly includes an adjustable position mechanism for alignment during operation. Controls are placed on the upper grip section. The unit operates without a power cord connection. The tine assembly and lower gear section can be separated for access during cleaning. Rear frame support allows upright placement for storage.

Product Benefits:

• Soil Preparation Coverage: Supports coverage of a 9 inches working path per pass for soil processing tasks.
• Depth Engagement Control: Reaches up to 6 inches depending on ground resistance and surface type.
• Rotational Tine Output: Operates at 360RPM for consistent tine movement during use cycles.
• Interchangeable Power Modules: Uses 20V 4.0Ah battery units with swap capability to reduce interruption between tasks.
• Activation Control System: Requires simultaneous interlock switch and trigger input before operation begins.

Specifications:

• Power Source: 20V battery system
• Working Width: 9 inches
• Working Depth: Up to 6 inches
• Rotation Speed: 360RPM
• Product Weight: 14.42 lb
• Battery Configuration: Three 4.0Ah battery units included, one pre-installed
